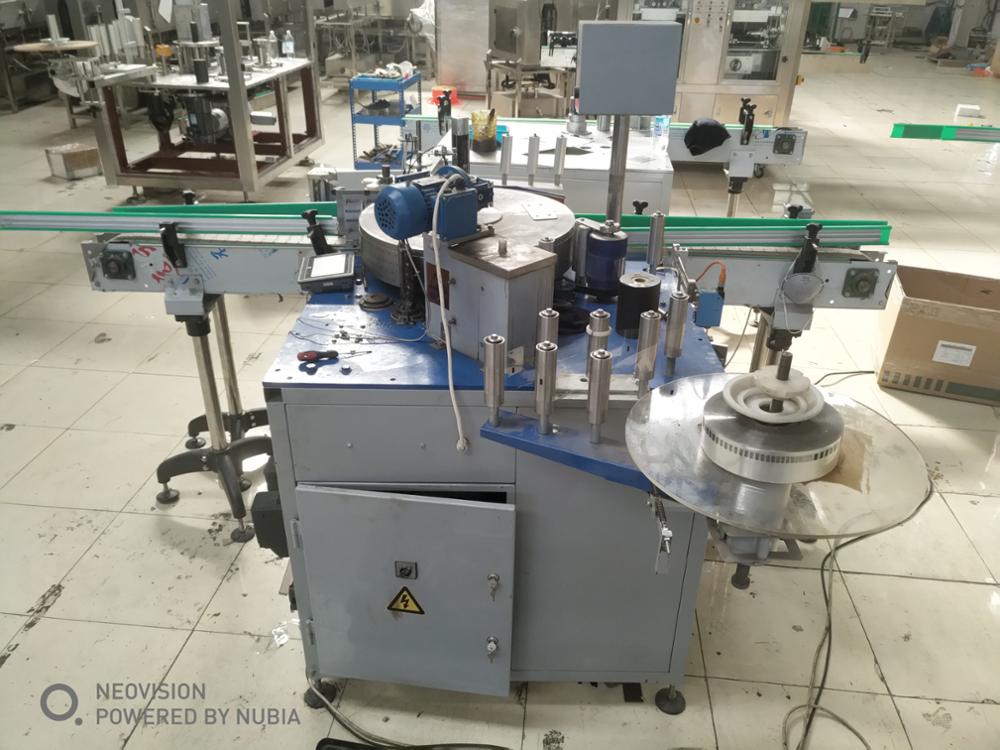

high accurcy full automatic liquid glue labeling machine production line

Name: high accurcy full automatic liquid glue labeling machine production line
Brand: zhanyan
Price: 1 USD

Quality high accurcy full automatic liquid glue labeling machine production line for sale

After-sales Service Provided : Engineers available to service machinery overseas

Application : Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical

Packaging Material : Wood

Type : Other, Packing Machine

Condition : New

Packaging Type : Bottles, Cans

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380/220v 50hz

Power : 4.5KW

Place of Origin : Shanghai, China (Mainland)

Brand Name : zhanyan

Model Number : HLML3

Weight : 1000kg

Dimension(L*W*H) : 2500*1400*1500mm

Certification : CE certificate

material of frame : stainless steel SUS304

After sale sevice : support

voice : <80db

bottle diameter : 50-100mm

speed : 3000-6000bpm

machine size : L=2500 mm x W= 1400mm x H=1500mm

working temperature : from+10 defree to +35 degree

air pressure : 84 to 106.7 kp

Supply Ability : 120 Set/Sets per Month

Packaging Details : 1.For packing, generally we use wood box outside as the pictures shows, with pallet. 2.Generally size around 2500*1400*1500mm(min),Up to model.also have bigger and smaller size 3.Weight range from 1000kg 4.Delivery date, generally need 30 to 50

Port : ShangHai

MOQ : 1 Set/Sets

Price : Negotiable

Contact Now

Automatic Hot Melt 3 linear hot melt Machine

high accurcy full automatic liquid glue labeling machine production line

Technical Parameters ,

Automatic Hot Melt Adhesives Applicator Machine For Bottles Cups Cans

Application	Round -shaped bottles Dia. 50~100mm
Powder	380/220VAC , 4.5kw
Label size	Max L 330mm*W 120mm
Bottles/hour	3000-6000bpm
Inner Dia. Of label (mm)	3”~10” adjustable
Decibel (CB)	Less than 65db
Operation temperature	-10~+40°C
Humidity	Between 30%~80%
Total weight (KG)	1000
Outline Dimension	250014001500mm (L×W×H)

Bottle types: high accurcy full automatic liquid glue labeling machine production line

Sketch Map:

ZYP- hot melt OPP labeling machine sketch map:

high accurcy full automatic liquid glue labeling machine production line

Electrical Apparatus

Electrical Apparatus List

No.	Electric appliance name	Type	From
1	Machine servo(1set)	ISMH2-15CD30CD-U231Y	Italy
2		IS620NT5R4I	Italy
3		S6-L-M11-5.0	Italy
4		S6-L-P01-5.0	Italy
5	Transducer	MD310T2.2B-N	Italy
6	Transducer	MD310T0.7B-N	Italy
7	PLC(1set)	AM600-1600END	Italy
8		AM600-4DA	Italy
9		AM600-PS2	Italy
10		AM600-CPU1608TP	Italy
11		AM600-0016ER	Italy
12	Ethernet screen	IT5070E(include line)	Italy
13	Servo(1set)	ISMH1-10B30CB-A330Z	Italy
14		IS620NS1R6I	Italy
15		S6-L-P20-3.0	Italy
16		S6-C4	Italy
17		44 pin connector	Italy
18	EU-type terminal (1set)	D024	Italy
19		40 core Terminal wiring	Italy
20	6 type shielded wire	S6-LT04-3.0-YD	Italy
21	6 type shielded wire	S6-LT04-0.3-YD	Italy

Cutting parts

Cutting parts:

high accurcy full automatic liquid glue labeling machine production line

Label Station

Label Station:

high accurcy full automatic liquid glue labeling machine production line

Roll form can ensure that label intension whether machine speed is high or not, it has the function of brake to adjust the cutting parts slightly

Packaging & Shipping

Packing adn shipping:

Pallet	Available	picture
Inner Package	Plastic Material
Outer Package	Wooden Box

high accurcy full automatic liquid glue labeling machine production line

hot melt labeler

hot glue labeling machine
